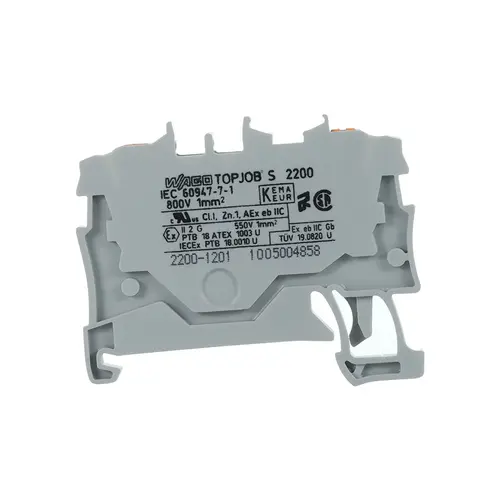

The Wago 2200-1201 is a 2-conductor through terminal block designed for efficient wiring on DIN-35 rails. Using push-button actuation, it features Wago’s CAGE CLAMP® connection technology, enabling fast, secure push-in wiring for conductors from 0.14 to 1.5mm². Ideal for streamlined installations, it includes a 2mm test port for easy testing and troubleshooting.
Constructed with durable polyamide (PA66) housing, the 2200-1201 operates within a wide temperature range from -60°C to +105°C, making it suitable for demanding environments. It supports side and centre markings for clear identification and has a slim 3.5mm width, optimizing space in distribution panels.
Q: What wire sizes are compatible with this terminal block?
A: It supports conductors from 0.14 to 1.5mm², suitable for both solid and fine-stranded wires.
Q: Can this terminal block be mounted on a standard DIN rail?
A: Yes, it’s compatible with DIN-35 rails (35 x 15 and 35 x 7.5mm).
Q: Does it include a test port for troubleshooting?
A: Yes, a 2mm test port is integrated for easy testing.
Q: What is the operating temperature range?
A: It operates from -60°C to +105°C, suitable for various environments.
(2200-1201)
Warranty starts from Invoice Date
Domestic Use: 1 Year
Commercial Use: 1 Year
Warranty Method: Return to Sparky Direct
| Specification | Details |
|---|---|
| Item Number | 2200-1201 |
| Connection Technology | Push-in CAGE CLAMP® |
| Rated Voltage | 800 V |
| Rated Surge Voltage | 8 kV |
| Rated Current | 13.5 A |
| Dimensions (WxHxD) | 3.5 x 48.5 x 39.5 mm |
| Operating Temperature | -60°C to +105°C |
| Material | Polyamide (PA66) |
| Flammability Class | UL94 V0 |
| Weight | 3.7 g |
These specifications and characteristics outline physical, mechanical, electrical details.
| Brand | Wago |
| SKU | 2200-1201 |
| Barcode # | 4055143691543 |
| Shipping Weight | 0.4100kg |
| Shipping Width | 0.105m |
| Shipping Height | 0.045m |
| Shipping Length | 0.230m |
| Shipping Cubic | 0.001086750m3 |
| TYPE | VALUE |
|---|---|
| Type | Electrical Accessories |
| Brand | Wago |
| Quantity | 100 |
| Nominal Voltage | 800V |
| Rated Current | 13.5A |
| Connection points | 2 |
| Rated Surge Voltage | 8kV |
