        Description

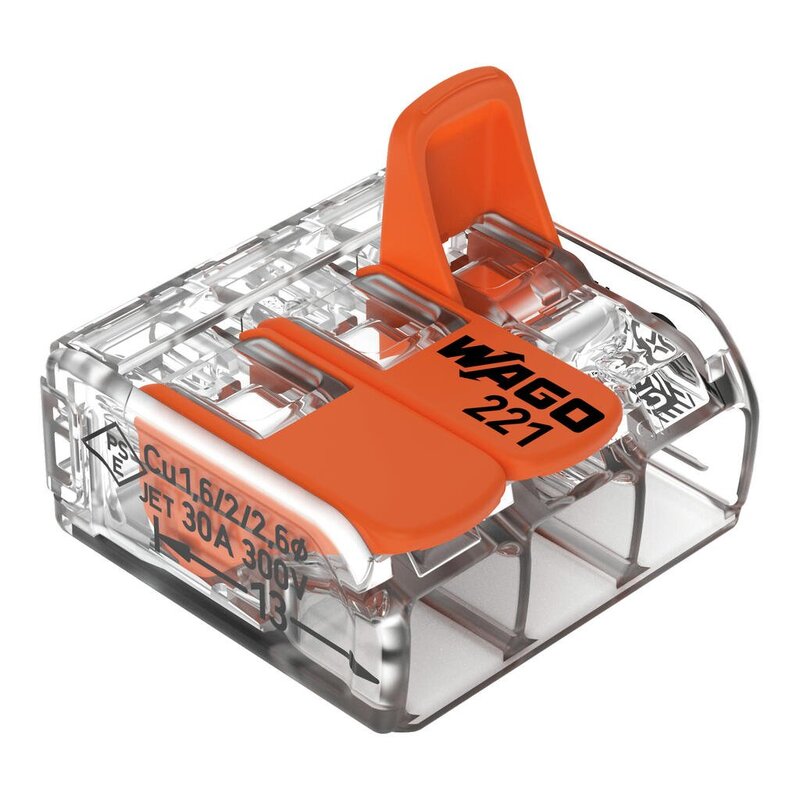

        Wago 221-613 | 6mm² 3-Way Compact Splicing Connectors | Jar of 30

        The Wago 221-613 6mm² 3-Way Compact Splicing Connectors offer a fast, easy, and reliable solution for connecting solid, stranded, and fine-stranded conductors. These connectors are ideal for electricians to simplify the installation process—pull the lever up, insert the conductor, and push the lever back down. This jar of 30 connectors is perfect for various electrical projects, from high-power device installations to managing long cable runs with larger conductor cross sections.

        The Wago 221-613 connectors are compatible with all conductor types within the 0.5 to 6mm² range. The compact design allows for easy fitting into tight spaces, and the transparent housing provides a clear view of the connections. With a rated current of 41A and a nominal voltage of 450V, these connectors are built to handle demanding electrical applications while ensuring safety and reliability.

        6mm² 3-Way Features:

        • Tool-Free Lever Mechanism: Simple and quick installation with an easy lever action—no tools required.
        • Wide Conductor Compatibility: Handles solid, stranded, and fine-stranded conductors from 0.5 to 6mm².
        • Compact and Transparent Design: Fits into tight spaces with ease, and the transparent housing allows for quick inspection of connections.
        • Jar of 30: Convenient packaging for bulk use, ideal for larger electrical installations.

        221-613 FAQ:

        Q: What conductor sizes can the Wago 221-613 connect?
        A: It can connect solid, stranded, and fine-stranded conductors ranging from 0.5 to 6mm².

        Q: How does the lever mechanism work?
        A: Simply pull the lever up, insert the conductor, and push the lever back down for a secure, tool-free connection.

        Q: What is the maximum voltage and current rating for this connector?
        A: The Wago 221-613 is rated for a nominal voltage of 450V and a rated current of 41A.

        (221-613)

        Warranty

        Warranty starts from Invoice Date

        Domestic Use: 1 Year
        Commercial Use: 1 Year
        Warranty Method: Return to Sparky Direct

        Features
        Specification Details
        Ratings per EN 60664
        Overvoltage category II
        Pollution degree 2
        Nominal voltage 450 V
        Rated surge voltage 4 kV
        Rated current 41 A
        Clamping units 3
        Connection technology CAGE CLAMP®
        Actuation type Lever
        Connectable conductor materials Copper
        Nominal cross-section 6 mm² / 10 AWG
        Solid conductor 0.5 … 6 mm² / 20 … 10 AWG
        Stranded conductor 0.5 … 6 mm² / 20 … 10 AWG
        Fine-stranded conductor 0.5 … 6 mm² / 20 … 10 AWG
        Strip length 12 … 14 mm / 0.47 … 0.55 inches
        Wiring direction Side-entry wiring
        Width 22.9 mm / 0.902 inches
        Height 10.1 mm / 0.398 inches
        Depth 21.1 mm / 0.831 inches
        Color Transparent
        Actuator color Orange
        Weight 4g
        Housing Material Polycarbonate (PC)
        Ambient temperature (operation) +85 °C
        Continuous operating temperature 105 °C
        Specifications

        These specifications and characteristics outline physical, mechanical, electrical details.

        Brand Wago
        SKU 221-613
        Barcode # 2000000009643
        Package Weight 0.170kg
        Package Width 0.065m
        Package Height 0.120m
        Package Length 0.065m
        TYPE VALUE
        Type Connector
        Brand Wago
        Colour Transparent/Orange
        Depth 21.1 mm
        Width 22.9 mm
        Height 10.1 mm
        Weight 4g
        Insulation material Polycarbonate (PC)
