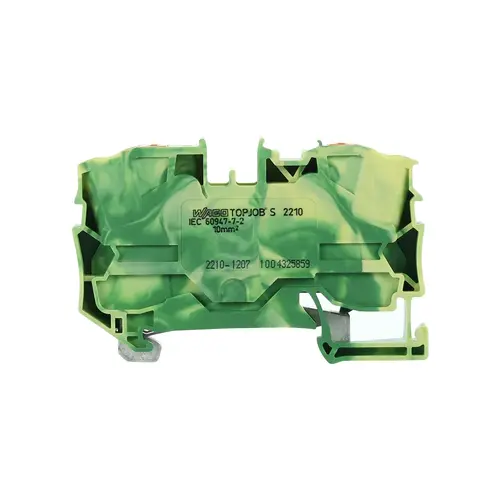

The Wago 2210-1207 2-Conductor Ground Terminal Block provides a secure grounding solution for DIN-35 rail systems, supporting up to 10mm² conductors. Featuring push-button actuation with Wago’s CAGE CLAMP® technology, this terminal block enables quick, tool-free wiring for both solid and stranded wires. An integrated 2mm test port allows easy diagnostics and testing without the need for disassembly.
With a compact 10mm width, this terminal block saves space in control panels and distribution boards. Its green-yellow colour coding ensures easy identification as a grounding component. Made from durable polyamide (PA66), it is rated for a broad temperature range of -60°C to +105°C, making it reliable in various environments. Side and centre marking options facilitate organized identification.
Q: What conductor sizes can this terminal block accommodate?
A: It is designed to support 10mm² conductors, making it ideal for secure grounding connections.
Q: Does this terminal block include a test port?
A: Yes, it has a 2mm test port for convenient testing and diagnostics.
Q: Is this terminal block compatible with standard DIN rails?
A: Yes, it fits both DIN-35 x 15 and DIN-35 x 7.5mm rails, suitable for various installations.
Q: What is the operating temperature range?
A: It operates from -60°C to +105°C, making it adaptable to a range of environments.
(2210-1207)
Warranty starts from Invoice Date
Domestic Use: 1 Year
Commercial Use: 1 Year
Warranty Method: Return to Sparky Direct
| Specification | Details |
|---|---|
| Item Number | 2210-1207 |
| Connection Technology | Push-in CAGE CLAMP® |
| Clamping Units | 2 |
| Nominal Cross-Section | 10 mm² |
| Solid Conductor Range | 0.5 … 16 mm² / 20 … 6 AWG |
| Fine-Stranded Conductor Range | 0.5 … 16 mm² / 20 … 6 AWG |
| Strip Length | 17 … 19 mm / 0.67 … 0.75 inches |
| Width | 10 mm / 0.394 inches |
| Height | 67.6 mm / 2.661 inches |
| Depth from Upper-Edge of DIN-Rail | 36.9 mm / 1.453 inches |
| Material | Polyamide (PA66) |
| Color | Green-Yellow |
| Weight | 30.9 g |
| Operating Temperature | -60°C to +105°C |
| Flammability Class | UL94 V0 |
These specifications and characteristics outline physical, mechanical, electrical details.
| Brand | Wago |
| SKU | 2210-1207 |
| Barcode # | 4055143736084 |
| Shipping Weight | 0.8150kg |
| Shipping Width | 0.080m |
| Shipping Height | 0.060m |
| Shipping Length | 0.280m |
| Shipping Cubic | 0.001344000m3 |
| TYPE | VALUE |
|---|---|
| Type | Electrical Accessories |
| Brand | Wago |
| Colour | Yellow/Green |
| Quantity | 25 |
| Connection Type | Push-in Cage Clamp |
| Solid Conductor | 0.5 - 16mm² |
| Fine-Stranded Conductor | 0.5 - 16mm² |
