Learn more by watching our Wago 2687-2144 | Eco 2 1 Phase Power Supply 24V DC 5A 120W video.

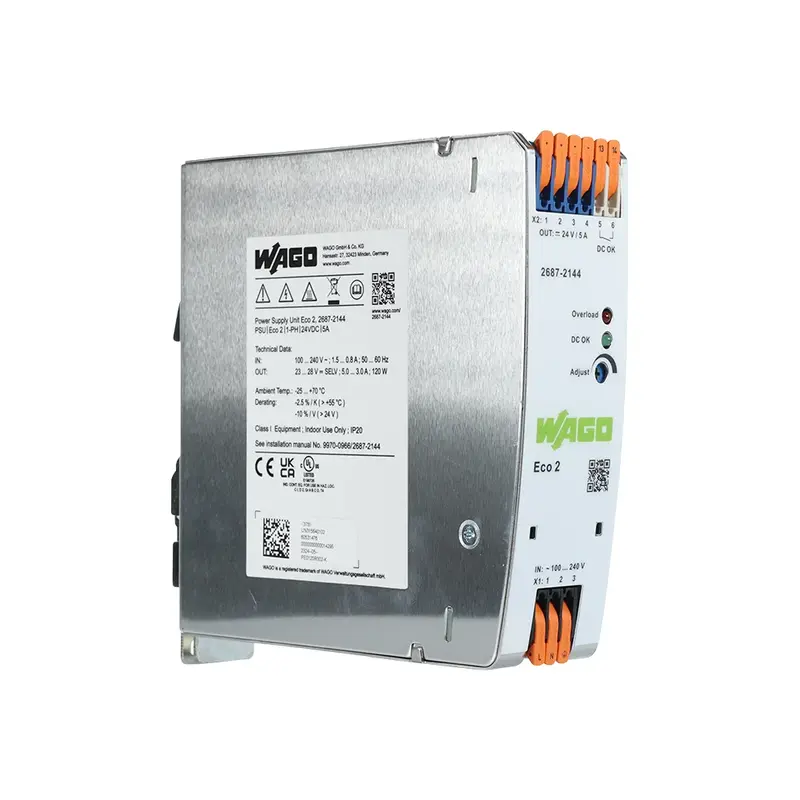

The Wago 2687-2144 Eco 2 Power Supply delivers stable 24V DC output with 5A current and a total power of 120W, making it ideal for various industrial and electrical applications. Compact and easy to install, this power supply mounts directly onto DIN-35 rails and features tool-free push-in CAGE CLAMP® terminals for quick, secure connections.
Built with active power factor correction (PFC) and an optical DC OK indicator, the 2687-2144 ensures high efficiency and reliable performance. It includes overload, short-circuit, and overvoltage protections for safe operation, while a built-in digital signal output allows for remote monitoring. With its IP20 rating, this Eco 2 power supply is well-suited for control panels, machinery, and other applications needing a consistent 24V DC power source.
Q: What is the power output of this supply?
A: It provides a 24V DC output at 5A, with a total power output of 120W.
Q: How does the unit indicate operational status?
A: It has an optical DC OK indicator that shows if the device is functioning correctly or experiencing an overload.
Q: What safety features are included?
A: The power supply includes protections against overload, short circuit, and overvoltage to ensure safe operation.
Q: Can this power supply be monitored remotely?
A: Yes, it has a digital signal output for remote monitoring of the power supply’s status.
(2687-2144)
Warranty starts from Invoice Date
Domestic Use: 1 Year
Commercial Use: 1 Year
Warranty Method: Return to Sparky Direct
| Specification | Details |
|---|---|
| Item Number | 2687-2144 |
| Input Voltage | 90-264 V AC |
| Output Voltage | 24 V DC (adjustable 23-28 V) |
| Output Current | 5 A |
| Output Power | 120 W |
| Efficiency | 90% |
| Protection Type | IP20 |
| Operating Temperature | -25°C to +70°C |
| Dimensions (WxHxD) | 38 x 130 x 130 mm |
| Weight | 620 g |
| Standards/Approvals | EN 61010-1, UL 61010-2-201, SEMI F47 |
These specifications and characteristics outline physical, mechanical, electrical details.
| Brand | Wago |
| SKU | 2687-2144 |
| Barcode # | 4066966401080 |
| Package Weight | 0.650kg |
| Package Width | 0.145m |
| Package Height | 0.145m |
| Package Length | 0.040m |
| TYPE | VALUE |
|---|---|
| Type | Power Supply |
| Brand | Wago |
| Number of Modules | 1 |
| Input Voltage (V/AC) | 240 |
| Output Voltage (V/DC) | 24 |
| Output Current (A) | 5 |
| Output Wattage (W) | 120 |
| Efficiency | 90% |
