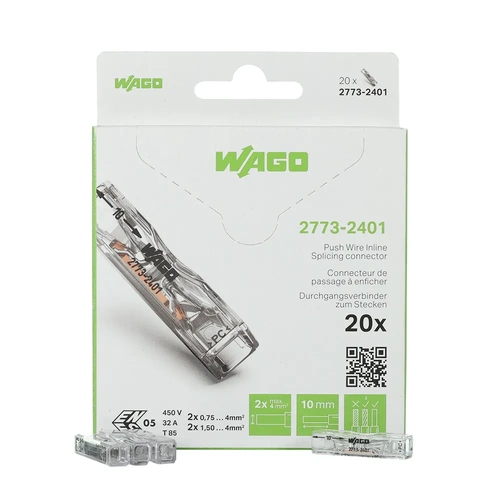

        Wago 2773-2401-995-020 | Push Wire Inline Splicing Connector for 4mm² Solid and Stranded Wires | 20-Pack

        The Wago 2773-2401-995-020 Push Wire Inline Splicing Connector 20 pack offers a reliable and simple way to securely connect solid and stranded wires up to 4mm². Using Wago’s PUSH WIRE® technology, it allows for quick, hassle-free conductor insertion, locking them into place at the backstop for a firm connection. The transparent housing ensures easy inspection of the connection.

        Designed for 2-conductor connections, the 2773-2401 is rated for 450V and 32A, making it versatile for various electrical installations. Its compact design and side-entry wiring make it perfect for use in tight spaces, such as flush-mounted junction boxes.

        Wago 2773-2401-995-020 Features:

        • PUSH WIRE® Technology: Fast, secure connection for both solid and stranded conductors up to 4mm².
        • 2-Conductor Design: Ideal for electrical installations and repairs in fixed wiring tasks.
        • Transparent Housing: Enables easy visual inspection to ensure proper connection.
        • Conductor Compatibility: Supports solid conductors of 0.75-4mm² and stranded conductors of 1.5-4mm².
        • Side-Entry Wiring: Compact and convenient for tight spaces like junction boxes.
        • Durable Build: Made from polycarbonate with chrome-nickel spring steel for strong, lasting connections.

        Wago 2773-2401-995-020 FAQ:

        Q: What is the maximum conductor size this connector supports?
        A: It supports solid conductors up to 4mm² and stranded conductors up to 4mm².

        Q: How is the wire inserted into the connector?
        A: Simply push the conductor into the connector until it reaches the backstop for a secure connection.

        Q: What is the rated voltage and current of this connector?
        A: It is rated for 450V and 32A, making it suitable for a wide range of electrical applications.

        Q: How many connectors are included in this pack?
        A: This is a 20-pack of Wago 2773-2401 inline splicing connectors.

        (2773-2401-995-020)

        Warranty

        Warranty starts from Invoice Date

        Domestic Use: 1 Year
        Commercial Use: 1 Year
        Warranty Method: Return to Sparky Direct

        Specifications

        These specifications and characteristics outline physical, mechanical, electrical details.

        Brand Wago
        SKU 2773-2401-995-020
        Barcode # 4066966349115
        Package Weight 0.041kg
        Package Width 0.093m
        Package Height 0.015m
        Package Length 0.120m
        TYPE VALUE
        Type Electrical Accessories
        Brand Wago
        Colour Transparent
        Quantity 20
        Nominal Voltage 450V
        Rated Current 32A
        Actuator Colour Orange
        Connection points 2
        Rated Surge Voltage 4kV
        Stranded Conductor 1.5-4mm²
        Solid Connductor 0.75-4mm²
