        Wago 787-1211 | Switch Mode Power Supply 1 Phase 12V DC 5A 60W
        $144.93 $131.75 ex. GST
        Description

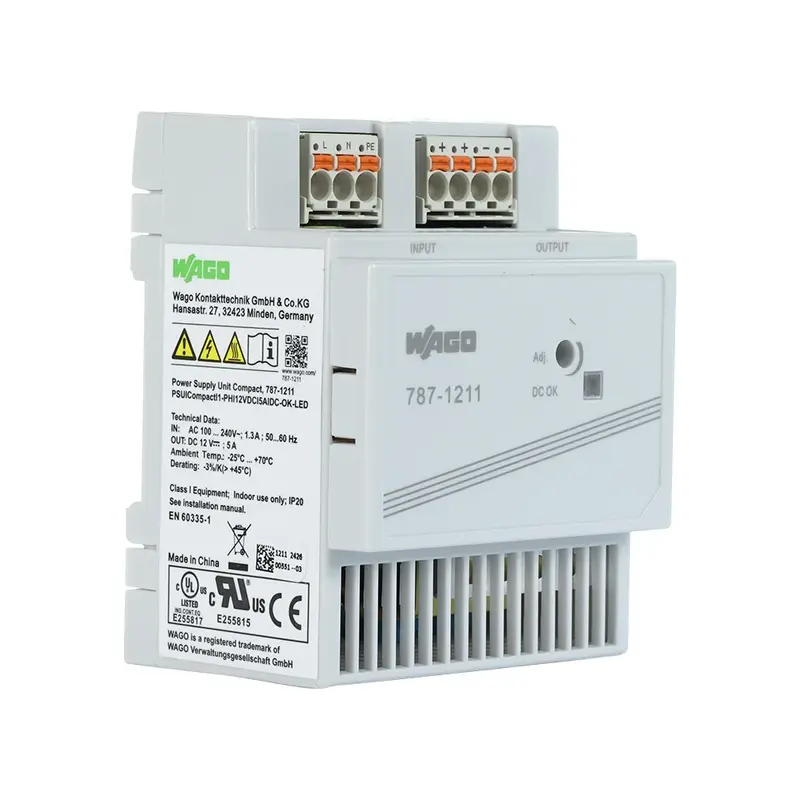

        Wago 787-1211 | Switch Mode Power Supply 1 Phase 12V DC 5A 60W

        The Wago 787-1211 Switch Mode Power Supply is a compact 12V DC unit with a 5A capacity and a 60W output, making it a reliable option for control and automation tasks. This versatile power supply accepts both AC (85-264V) and DC (125-375V) input, allowing it to integrate seamlessly into standard distribution boards. Its compact, stepped design makes DIN-rail mounting easy and space-efficient in electrical panels.

        Equipped with tool-free picoMAX® push-in technology, the 787-1211 simplifies wiring and installation. A green DC OK LED indicator provides real-time operational feedback, while built-in protections, including overload, short circuit, and reverse polarity, ensure safe, reliable performance. Designed for both parallel and series configurations, this power supply is a versatile solution for stable low-voltage power.

        Wago 787-1211 Features:

        • 12V DC Output (5A, 60W): Provides consistent, low-voltage power for a range of applications.
        • AC/DC Input Compatibility: Accepts 85-264V AC or 125-375V DC, offering flexible integration across installations.
        • Compact Stepped Profile: Optimised for standard distribution boards, saving installation space.
        • Switched-Mode Design: Improves energy efficiency by minimising heat output.
        • picoMAX® Push-In Connections: Tool-free wiring for quick, secure installation.
        • DC OK LED Indicator: Displays operational status for easy monitoring.
        • Built-In Safety Protections: Includes overload, short-circuit, and reverse polarity protection for safe operation.
        • Parallel and Series Operation: Supports flexible configurations for varied power needs.

        Wago 787-1211 FAQ:

        Q: What input voltages does this power supply accept?
        A: It accepts 85-264V AC or 125-375V DC input, making it suitable for diverse power sources.

        Q: What is the output specification of this unit?
        A: The unit provides 12V DC output with a 5A capacity, totalling 60W.

        Q: Is this power supply easy to install?
        A: Yes, it includes picoMAX® push-in connections for tool-free installation on DIN rails.

        Q: Does it support safety features?
        A: Yes, it includes overload, short-circuit, and reverse polarity protection to ensure safe operation.

        (787-1211)

        Warranty

        Warranty starts from Invoice Date

        Domestic Use: 1 Year
        Commercial Use: 1 Year
        Warranty Method: Return to Sparky Direct

        Features
        Specification Details
        Item Number 787-1211
        Input Voltage 100-240 V AC; 140-340 V DC
        Output Voltage 12 V DC (adjustable 10-14 V)
        Output Current 5 A
        Output Power 60 W
        Efficiency 88.5%
        Protection Type IP20
        Operating Temperature -25°C to +70°C
        Dimensions (WxHxD) 72 x 90 x 56 mm
        Weight 63 g
        Standards/Approvals EN 60335-1, UL 508, EN 62368-1
        Specifications

        These specifications and characteristics outline physical, mechanical, electrical details.

        Brand Wago
        SKU 787-1211
        TYPE VALUE
        Type Power Supply
        Brand Wago
        Number of Modules 2
        Input Voltage (V/AC) 100 - 240
        Input Voltage (V/DC) 140 - 340
        Output Voltage (V/DC) 12
        Output Current (A) 5
        Output Wattage (W) 60
        Efficiency 88.5%
