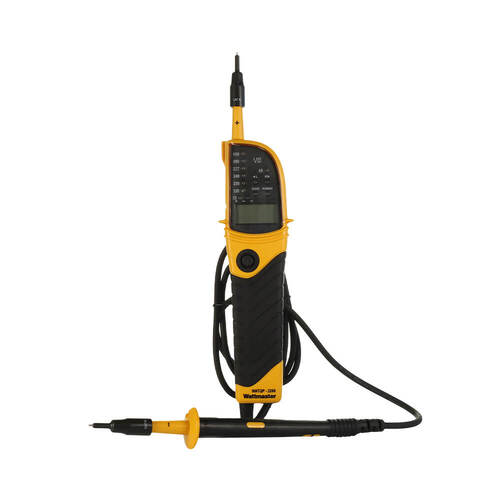

Wattmaster WATQP-2286 | Voltage Tester AC/DC
Learn more by watching our Wattmaster WATQP-2286 | Voltage Tester AC/DC video.
The Wattmaster WATQP-2286 Voltage Tester is a versatile and reliable tool designed for electricians. This two-pole voltage tester provides accurate testing of voltages ranging from 12-400V AC and 12-690V DC. The visual LED display ensures clear and precise readings, while the built-in light aids in dimly lit areas, enhancing usability.
The tester includes functions such as voltage and continuity testing, load connection, phase sequence indication, low impedance, and rotary field indication. The double-moulded plastic housing offers durability, and the device is IEC/EN 61243-3 approved, ensuring compliance with safety standards. Supplied with batteries, the Wattmaster WATQP-2286 is ready for immediate use.
Q: What voltage ranges can this tester handle?
A: The tester can handle 12-400V AC and 12-690V DC.
Q: Does this tester have a built-in light?
A: Yes, it features a built-in light for use in dim areas.
Q: What is the protection class of this tester?
A: The tester has an IP64 protection class, making it dust-proof and splash-proof.
(WATQP-2286)
Warranty starts from Invoice Date
Domestic Use: 1 Year
Commercial Use: 1 Year
Warranty Method: Return to Sparky Direct
| Specification | Details |
|---|---|
| Indication | LED |
| AC Volt | 12-400V |
| DC Volt | 12-690V |
| Continuity Test | <400kΩ |
| Polarity Test | LED |
| Phase Sequence Indication | LED |
| Single Pole Phase Test | LED |
| Load Connection via Push Buttons | I§ < 0.2A |
| Connecting Cable Length | 900mm |
| Protection Class | IP64 (dust-proof/ splash-proof) |
| Category Rating | CAT III 690V |
| Dimensions | 240 x 78 x 40mm |
| Weight | 237g |
These specifications and characteristics outline physical, mechanical, electrical details.
| Brand | Wattmaster |
| SKU | WATQP-2286 |
| Barcode # | 9328587015219 |
| Shipping Weight | 0.2200kg |
| Shipping Width | 0.075m |
| Shipping Height | 0.040m |
| Shipping Length | 0.320m |
| Shipping Cubic | 0.000960000m3 |
| TYPE | VALUE |
|---|---|
| Type | Voltage Tester |
| Brand | Wattmaster |
| IP Rating | IP64 |
| Category Type | CAT III 690V |
| DC Voltage | 12-690V |
| AC Voltage | 12-400V |
| Continuity Testing | <400kΩ |
