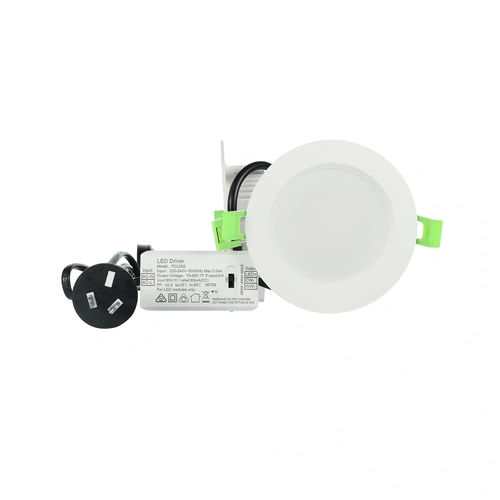

The XLED XDA5 Aura Shallow LED Downlight is a sleek, energy-efficient option for both homes and commercial spaces. Its slim profile makes it perfect for tight ceiling spaces, like apartments, hotels, or retail fit-outs. It fits neatly into a standard 90mm cutout, making retrofits or new installs a breeze.
It runs on just 9W but punches out 1000 lumens of bright, even light with a wide 110° beam angle—ideal for general lighting in open spaces. There’s a tri-colour CCT switch on board too, so you can pick between warm white (3000K), cool white (4000K), or daylight (5700K), depending on the vibe you’re after. Plus, it is compatible with dimmable drivers, so you can dial the brightness up or down as needed.
This downlight is IC-4 rated, which means you can safely install it in insulated ceilings without needing extra clearance. It’s also IP44 rated, so it can handle areas where there’s a bit of moisture like kitchens and bathrooms.
Q: Can this downlight be dimmed?
A: Yep, it can be paired with a dimmable driver, so you can adjust the light level to suit the mood.
Q: Is it safe to install in insulated ceilings?
A: It sure is—this one’s IC-4 rated, so you can install it directly under insulation.
Q: What size cutout does it need?
A: It’s designed for a standard 90mm cutout. Easy to fit, even in tight spaces.
(XDA5)
Warranty starts from Invoice Date
Domestic Use: 3 Year
Commercial Use: 3 Year
Warranty Method: Return to Sparky Direct
| Specification | Details |
|---|---|
| Model | XDA5 |
| Wattage | 9W |
| Voltage | AC 220-240V |
| Lumens | 1000lm |
| CRI | 80 |
| Power Factor | >0.9 |
| Beam Angle | 110° |
| CCT | 3000K / 4000K / 5700K |
| IP Rating | IP44 |
| Cutout | 90mm cutout |
| Dimensions | ⌀114mm x 29mm |
| Connection | Flex and plug |
These specifications and characteristics outline physical, mechanical, electrical details.
| Brand | ILD |
| SKU | XDA5 |
| Barcode # | 0796548148921 |
| Package Weight | 0.240kg |
| Package Width | 0.155m |
| Package Height | 0.130m |
| Package Length | 0.045m |
| TYPE | VALUE |
|---|---|
| Type | Lighting |
| Type | Down Light |
| Colour | White |
| Lumens (Lm) | 1000 |
| Wattage (W) | 9 |
| Dimmable | Yes |
| Beam Angle | 110° |
| CRI | > 80 |
| IP Rating | IP44 Front only |
| Dimensions | Ø114mm x H29mm |
| CCT (K) | 3000K/4000K/5700K |
