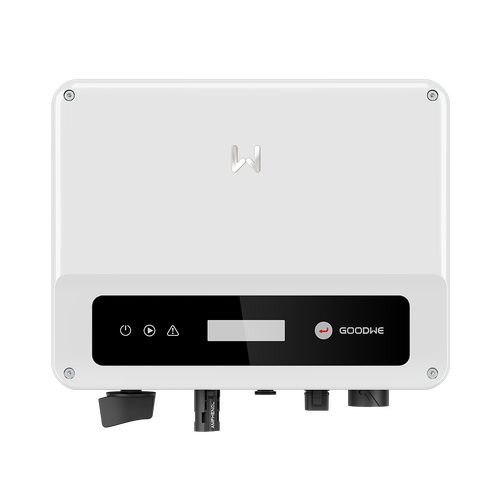

        GoodWe GW3000-XS-11 | 3kW Single-MPPT Grid-Tied PV Inverter

        The GoodWe GW3000-XS-11 is an ultra-small, lightweight residential solar inverter designed to provide high efficiency and quiet operation for households. Weighing under 6kg and with a fascia size equivalent to an A4 sheet, this inverter is compact yet powerful. It offers 130% DC input oversizing and can achieve a maximum efficiency of 97.6%, ensuring optimal performance even in extreme weather conditions.

        The inverter features a 40V start-up voltage, and advanced communication options including LAN and Wi-Fi for easy monitoring. The GoodWe XS model Plus+ is not only efficient but also easy to install, making it an ideal choice for modern residential solar systems.

        GoodWe GW3000-XS-11 Features:

        • High Efficiency: Achieves a maximum efficiency of 97.6%.
        • DC Oversizing: Supports 130% DC input oversizing for optimal performance and 110% AC output oversizing.
        • Compact Design: A4 size and weighs only 5.8kg for easy installation.
        • Advanced Monitoring: Equipped with LAN and Wi-Fi for real-time monitoring.
        • Start-Up Voltage: Low 40V start-up voltage for early power generation.
        • Fanless Design: For quieter operations around residential areas.

        GoodWe GW3000-XS-11 FAQ:

        Q: What is the maximum efficiency of this inverter?
        A: The maximum efficiency is 97.6%.

        Q: How much does the GoodWe GW3000-XS-11 weigh?
        A: It weighs just 5.8kg.

        Q: What communication options are available?
        A: The inverter supports both LAN and Wi-Fi for monitoring.

        Q: What is the start-up voltage of the inverter?
        A: The start-up voltage is 40V.

        (GW3000-XS-11)

        Warranty

        Warranty starts from Invoice Date

        Domestic Use: 1 Year
        Commercial Use: 1 Year
        Warranty Method: Return to Sparky Direct

        Features
        Specification Details
        Max. Input Power (W) 3900
        Max. Input Voltage (V) 600
        MPPT Operating Voltage Range (V) 50 ~ 550
        Start-up Voltage (V) 50
        Nominal Input Voltage (V) 360
        Max. Input Current per MPPT (A) 15
        Max. Short Circuit Current per MPPT (A) 18.75
        Number of MPP Trackers 1
        Number of Strings per MPPT 1
        Nominal Output Power (W) 3000
        Nominal Output Apparent Power (VA) 3000
        Max. AC Active Power (W) 3300
        Max. AC Apparent Power (VA) 3300
        Nominal Output Voltage (V) 220 / 230
        Output Voltage Range (V) 154 ~ 288
        Nominal AC Grid Frequency (Hz) 50 / 60
        AC Grid Frequency Range (Hz) 45 ~ 55 / 57 ~ 63
        Max. Output Current (A) 14.3
        Power Factor ~1 (Adjustable from 0.8 leading to 0.8 lagging)
        Max. Total Harmonic Distortion <3%
        Max. Efficiency 97.6%
        European Efficiency 97.2%
        PV Insulation Resistance Detection Integrated
        Residual Current Monitoring Integrated
        Anti-islanding Protection Integrated
        AC Overcurrent Protection Integrated
        AC Short Circuit Protection Integrated
        AC Overvoltage Protection Integrated
        DC Switch Integrated
        DC Surge Protection Type III (Type II Optional)
        AC Surge Protection Type III
        AFCI Optional
        Operating Temperature Range (°C) -25 ~ +60
        Relative Humidity 0 ~ 100%
        Max. Operating Altitude (m) 3000
        Cooling Method Natural Convection
        User Interface LED, LCD, WLAN + APP
        Communication WiFi or LAN or RS485 (Optional)
        Weight (kg) 5.8
        Dimension (W × H × D mm) 295 × 230 × 113
        Noise Emission (dB) <30
        Topology Non-isolated
        Self-consumption at Night (W) <1
        Ingress Protection Rating IP65
        DC Connector MC4 (2.5 ~ 4mm²)
        AC Connector Plug and play connector
        Specifications

        These specifications and characteristics outline physical, mechanical, electrical details.

        Brand GoodWe
        SKU GW3000-XS-11
        Shipping Weight 7.8000kg
        Shipping Width 0.345m
        Shipping Height 0.280m
        Shipping Length 0.163m
        Shipping Cubic 0.015745800m3
        TYPE VALUE
        Type PV Inverter
        Brand GoodWe
        Colour White
        Max Input Voltage 600V
        Max Input Current 15A
        Number of MPP Trackers/Number of Strings per MPPT 1/1
        Nominal Output Voltage 220/230V
