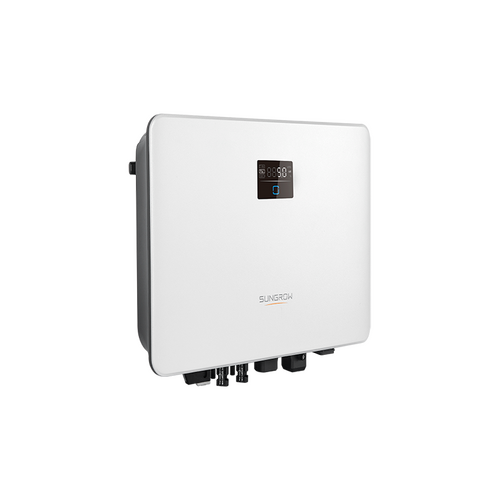

        SUNGROW SG5.0RS | 5000W Double-MPPT String Inverter for 600 Vdc

        The Sungrow SG5.0RS is a powerful 5000W double-MPPT string inverter designed for residential solar systems. This inverter supports a 600 Vdc system and is compatible with high-power and bifacial PV modules. It features a lower startup voltage and a wider MPPT range, ensuring high energy yield and system reliability.

        Equipped with advanced safety features such as integrated arc fault circuit interrupter and built-in Type II DC&AC SPD, the SG5.0RS guarantees safe operation. The user-friendly design includes plug-and-play installation, smart IV curve scanning, real-time data monitoring, and a compact, lightweight build for easy setup.

        5000W String Inverter Features:

        • High Yield: Supports high power PV modules and bifacial modules with a wide MPPT voltage range (40V-560V).
        • Smart Management: Features smart IV curve scanning, 24/7 live monitoring, and over-the-air firmware updates.
        • Robust Safety: Includes integrated arc fault circuit interrupter, Type II DC&AC SPD, and C5 corrosion protection rating.
        • User-Friendly: Compact design with plug-and-play installation, one-click access to iSolarCloud monitoring platform, and optimized heat dissipation design.
        • Efficient Performance: Max efficiency of 97.9% and European efficiency of 97.3%.

        SG5.0RS FAQ:

        Q: What is the maximum efficiency of the Sungrow SG5.0RS inverter?
        A: The maximum efficiency is 97.9%.

        Q: Can the SG5.0RS be monitored remotely?
        A: Yes, it offers real-time data monitoring and over-the-air firmware updates for remote management.

        Q: What safety features are included in the SG5.0RS?
        A: The inverter includes an integrated arc fault circuit interrupter, built-in Type II DC&AC SPD, and a C5 corrosion protection rating.

        Q: What is the MPPT voltage range for the SG5.0RS?
        A: The MPPT voltage range is 40V to 560V, making it compatible with various PV modules.

        (SG5.0RS)

        Warranty

        Warranty starts from Invoice Date

        This warranty offers a combined coverage of 10 years, divided into two phases:

        First 5 Years: During this period, you are entitled to a full product replacement in case of any issues or defects. This means if your product malfunctions within the first 5 years, you'll receive a brand-new replacement.

        Following 5 Years: After the initial 5 years, the warranty continues for an additional 5 years, but it shifts to covering parts only. In this phase, if any product components need replacement or repair, the warranty will cover the cost of those parts.

        This comprehensive warranty (Warranty Method: Return to Sparky Direct) ensures both the longevity and performance of your product, offering you peace of mind for a full decade.

        Features
        Specification Details
        Input (DC)
        Recommended max. PV input power 7.5 kWp
        Max. PV input voltage 600 V
        Min. operating PV voltage / Start-up input voltage 40 V / 50 V
        Rated PV input voltage 360 V
        MPP voltage range 40 – 560 V
        No. of independent MPP inputs 2
        Default No. of PV strings per MPPT 1
        Max. PV input current 32A (16A/16A)
        Max. DC short-circuit current 40A (20A/20A)
        Output (AC)
        Rated AC output power 5000W
        Max. AC Output power 5000W
        Rated AC output current (at 230V) 21.8A
        Max. AC output current 22.8A
        Rated AC voltage 220V/230V/240V
        AC voltage range 154-276V
        Rated grid frequency / Grid frequency range 50 Hz / 45 – 55 Hz, 60 Hz / 55 – 65 Hz
        Harmonic (THD) < 3 % (at rated power)
        Power factor at rated power / Adjustable power factor > 0.99 / 0.8 leading – 0.8 lagging
        Feed-in phases / Connection phases 1/1
        Efficiency
        Max. efficiency 97.9%
        European efficiency 97.3%
        Protection
        Grid monitoring Yes
        DC reverse polarity protection Yes
        AC short-circuit protection Yes
        Leakage current protection Yes
        Surge Protection DC type II / AC type II
        DC switch Yes
        PV string current monitoring Yes
        Arc fault circuit interrupter (AFCI) Yes
        PID Zero Function Yes
        Optimizer Compatibility Optional
        General Data
        Dimensions (W*H*D) 410 * 270 * 150 mm
        Weight 10 kg
        Mounting method Wall-mounting bracket
        Topology Transformerless
        Degree of protection IP65
        Operating ambient temperature range -25 to 60 ℃
        Allowable relative humidity range (non-condensing) 0 – 100 %
        Cooling method Natural cooling
        Max. operating altitude 4000 m
        Communication
        Display LED digital display & LED indicator
        Communication Ethernet / WLAN / RS485 / DI (Ripple control & DRM)
        DC connection type MC4 (Max. 6 mm² )
        AC connection type Plug and play connector (Max. 6 mm² )
        Grid compliance IEC / EN62109-1/2, IEC / EN62116, IEC / EN61727, IEC / EN61000-6-2/3, EN50549-1, AS4777.2, ABNT NBR 16149, ABNT NBR 16150, UNE 217002:2020, NTS V2 TypeA, CEI 0-21:2020, VDE0126-1-1/A1 ( VFR-2019 ), UTE C15-712, C10/11, G98/G99
        Grid Support Active & reactive power control and power ramp rate control
        Specifications

        These specifications and characteristics outline physical, mechanical, electrical details.

        Brand SUNGROW
        SKU SG5.0RS
        Package Weight 12.400kg
        Package Width 0.490m
        Package Height 0.260m
        Package Length 0.400m
        TYPE VALUE
        Type String Inverter
        Brand Sungrow
        Colour White
